MP60UB Mini Digital Mixer Amplifier with USB & Bluetooth

Features:

● Built-in radio, Bluetooth, usb function.

● 2 MIC inputs, 2 EMC inputs, 2 line inputs, 1 line output.

● Speaker output of 100V or 70V & 4 -16 Ω.

● Support infrared remote control.

● With priority function, priority is EMC/MIC1>AUX1/AUX2/MIC2.

● With master volume control, individual volume control of MIC & Line, treble and bass volume control.

Specification:

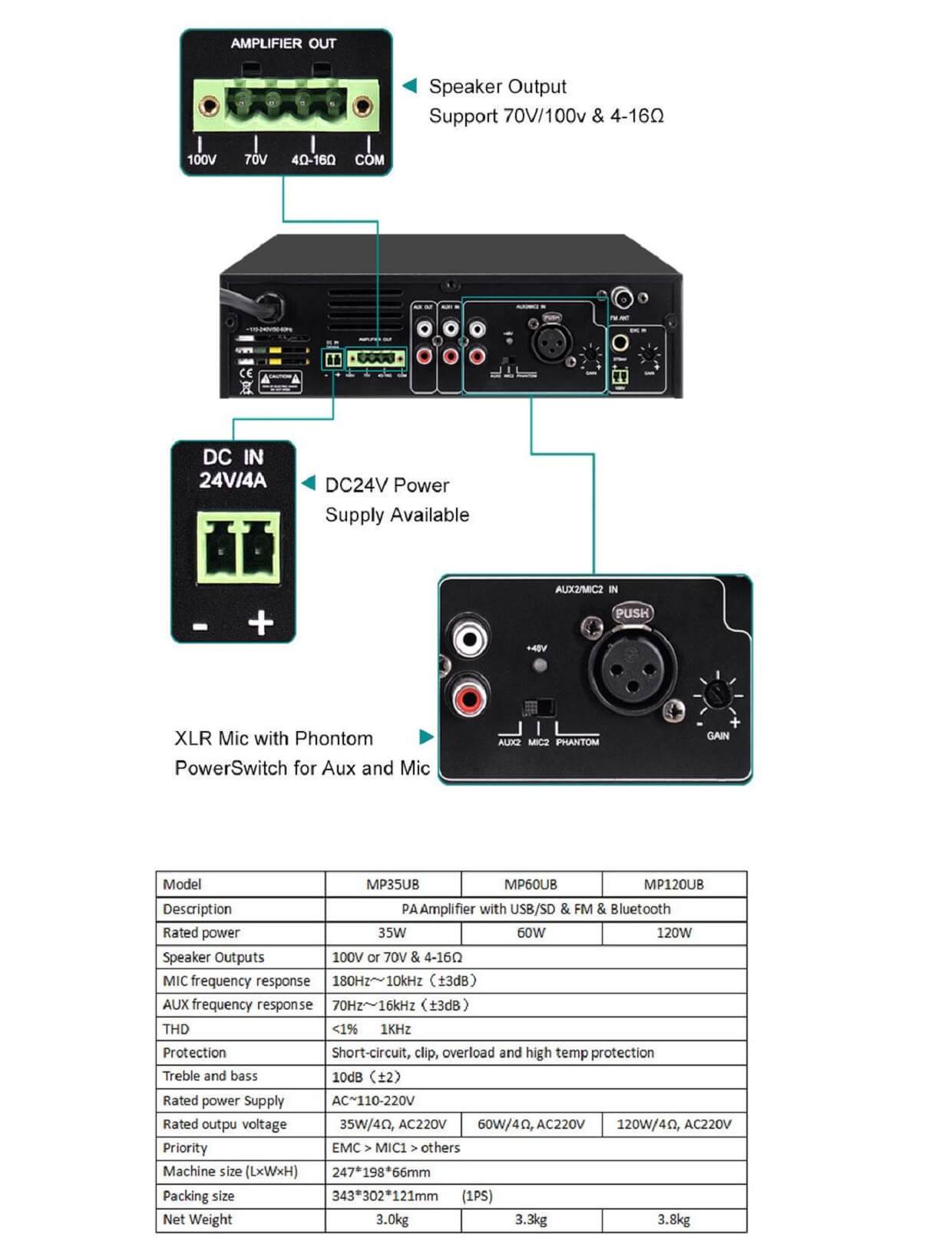

MP60UB is 1.5U designed Mini Digital amplifier with USB/FM and Bluetooth.  The Speaker output is 70V/100V and 4-16Ω available, 2 Aux input, Min1 is 6.3mm jack in front panel and Mic2 is XLR in rear panel, Phantom power available for Mic2. Individual volume control for each Mic and Aux, also provide Bass and Treble control. what’s more, it also has EMC signal input for emergency situation.

Model

MP60UB

Description

PA Amplifier with USB & FM & Bluetooth

Rated power

60W

60W

MIC1 input sensitivity

7.5mV±1mV

MIC2 input sensitivity

7.5mV±1mV

AUX1 input sensitivity

360mV±10%

AUX2 input sensitivity

360mV±10%

EMC input sensitivity

200Hz~10kHz(±3dB)

MIC frequency response

200Hz～10kHz（±3dB）

AUX frequency response

80Hz～16kHz（±3dB）

Noise

<5mV  (4 ohm load output terminal)

THD

<1%   1KHz

Treble adjustment

10dB（±2）

Bass adjustment

10dB（±2）

Rated power Supply

AC~110-240V

Interface output voltage

70V,100V (Constant voltage output)

Priority

EMC > MIC1 >AUX1/AUX2/MIC2

Machine size(D×W×H)

198*247*66mm

Packing size

343*302*121mm   (1PS)

Maximum packing size

630*355*283mm  (4PS)

Net Weight

2.6kg

Gross Weight

3.25Kg
